產品特性：
按照國際標準7241-1A標準生產
針閥設計可以加大流體的通過量
鎖定球系統可快速連接和斷開接頭
雙向流
可提供塑料和鋁制防塵帽塞
應用場合：
多功能KSA系列廣泛應用于各種液壓應用，包括農業應用，移動和建筑設備，工廠內機械，包括液壓動力單元和手動工具。
在任何需要連接或斷開流體輸送管線以進行設備操作或維護的地方都可以找到這種接頭。
產品規格：
KSAK-08帶泄壓閥芯
標準: 國際標準 7241-1A
材質:主體優質鋼鍍鋅
密封件: 標準NBR丁腈橡膠， FKM,EPDM可供選擇
背托環: PTFE
工作溫度: 用標準密封圈 -25℃ + 125℃

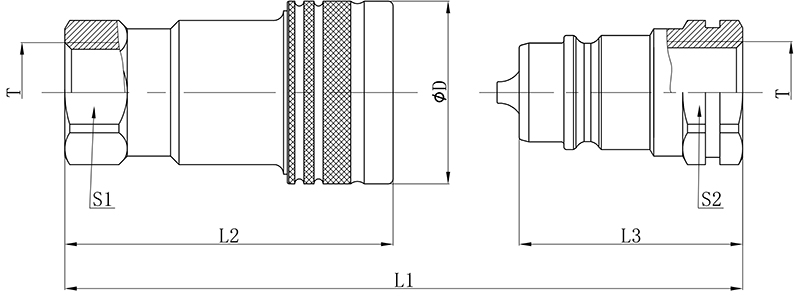

| 力浦液壓 | 國際標準 | L1 | L2 | L3 | ?D | S1 | S2 | T | 母接頭編號 | 公接頭編號 |
| 04 | 6.3 | 70.5 | 49.2 | 35.0 | 26.0 | 19.0 | 19.0 | 1/4"BSP | KSA-04F-BSP | KSA-04M-BSP |
| 1/4"BSPT | KSA-04F-BSPT | KSA-04M-BSPT | ||||||||
| 1/4"NPT | KSA-04F-NPT | KSA-04M-NPT | ||||||||
| 06 | 10 | 85.7 | 60.5 | 42.5 | 30.5 | 22.0 | 22.0 | 3/8"BSP | KSA-06F-BSP | KSA-06M-BSP |
| 3/8"BSPT | KSA-06F-BSPT | KSA-06M-BSPT | ||||||||
| 3/8"NPT | KSA-06F-NPT | KSA-06M-NPT | ||||||||
| 08 | 12.5 | 93.0 | 68.5 | 46.5 | 38.0 | 27.0 | 27.0 | 1/2"BSP | KSA-08F-BSP | KSA-08M-BSP |
| 1/2"BSPT | KSA-08F-BSPT | KSA-08M-BSPT | ||||||||
| 1/2"NPT | KSA-08F-NPT | KSA-08M-NPT | ||||||||
| 3/4"UNF | KSA-08F-UNF34 | KSA-08M-UNF34 | ||||||||
| 7/8"UNF | KSA-08F-UNF78 | KSA-08M-UNF78 | ||||||||
| M18*1.5 | KSA-08F-M1815 | KSA-08M-M1815 | ||||||||
| M20*1.5 | KSA-08F-M2015 | KSA-08M-M2015 | ||||||||
| M22*1.5 | KSA-08F-M2215 | KSA-08M-M2215 | ||||||||
| 1/2"BSP | KSAK-08F-BSP | KSAK-08M-BSP | ||||||||
| 1/2"BSPT | KSAK-08F-BSPT | KSAK-08M-BSPT | ||||||||
| 1/2"NPT | KSAK-08F-NPT | KSAK-08M-NPT | ||||||||
| 3/4"UNF | KSAK-08F-UNF34 | KSAK-08M-UNF34 | ||||||||
| 7/8"UNF | KSAK-08F-UNF78 | KSAK-08M-UNF78 | ||||||||
| M18*1.5 | KSAK-08F-M1815 | KSAK-08M-M1815 | ||||||||
| M20*1.5 | KSAK-08F-M2015 | KSAK-08M-M2015 | ||||||||
| M22*1.5 | KSAK-08F-M2215 | KSAK-08M-M2215 | ||||||||
| 12 | 20 | 114.2 | 84.1 | 57.1 | 46.0 | 34.0 | 34.0 | 3/4"BSP | KSA-12F-BSP | KSA-12M-BSP |
| 3/4"BSPT | KSA-12F-BSPT | KSA-12M-BSPT | ||||||||
| 3/4"NPT | KSA-12F-NPT | KSA-12M-NPT | ||||||||
| 1-1/16UNF | KSA-12F-UNF1116 | KSA-12M-UNF1116 | ||||||||
| 16 | 25 | 131.8 | 99.5 | 65.5 | 52.0 | 41.0 | 41.0 | 1"BSP | KSA-16F-BSP | KSA-16M-BSP |
| 1"BSPT | KSA-16F-BSPT | KSA-16M-BSPT | ||||||||
| 1"NPT | KSA-16F-NPT | KSA-16M-NPT | ||||||||
| 1-5/16"UNF | KSA-16F-UNF1516 | KSA-16M-UNF1516 | ||||||||
| 20 | 31.5 | 148.0 | 116.0 | 74.0 | 69.5 | 50.0 | 50.0 | 1-1/4"BSP | KSA-20F-BSP | KSA-20M-BSP |
| 1-1/4"BSPT | KSA-20F-BSPT | KSA-20M-BSPT | ||||||||
| 1-1/4"NPT | KSA-20F-NPT | KSA-20M-NPT | ||||||||
| 24 | 40 | 168.0 | 134.7 | 84.0 | 82.0 | 60.0 | 60.0 | 1-1/2"BSP | KSA-24F-BSP | KSA-24M-BSP |
| 1-1/2"BSPT | KSA-24F-BSPT | KSA-24M-BSPT | ||||||||
| 1-1/2"NPT | KSA-24F-NPT | KSA-24M-NPT | ||||||||
| 32 | 50 | 200.2 | 160.0 | 100.0 | 99.0 | 75.0 | 75.0 | 2"BSP | KSA-32F-BSP | KSA-32M-BSP |
| 2"BSPT | KSA-32F-BSPT | KSA-32M-BSPT | ||||||||
| 2"NPT | KSA-32F-NPT | KSA-32M-NPT |
技術特性：
| 規格 | 最大工作壓力 | 額定流量 | 最大流量 | 最小爆破壓力 | 液體溢出量 | ||||||
| 接頭體 | 接頭套 | 連接下 | |||||||||
| 力浦液壓 | 國際標準 | (bar) | (l/m) | （l/m) | (bar) | (bar) | (bar) | (cc) | |||
| 04 | 6.3 | 350 | 12 | 17 | 1500 | 1700 | 1400 | 0.5 | |||
| 06 | 10 | 350 | 23 | 46 | 1400 | 1500 | 1500 | 1.9 | |||
| 08 | 12.5 | 250 | 45 | 90 | 1000 | 1400 | 1200 | 2.7 | |||
| 12 | 20 | 250 | 106 | 190 | 900 | 1500 | 1000 | 9.3 | |||
| 16 | 25 | 250 | 189 | 280 | 1300 | 1300 | 1200 | 16 | |||
| 20 | 31.5 | 200 | 288 | 480 | 1100 | 850 | 1000 | 30 | |||
| 24 | 40 | 190 | 379 | 757 | 800 | 800 | 820 | 54 | |||
| 32 | 50 | 160 | 757 | 1000 | 650 | 960 | 1000 | 120 | |||
防塵帽塞：
| 力浦液壓 | 國際標準 | 母接頭防塵塞 | 公接頭防塵帽 | 材質 | 顏色 | |||
| 04 | 6.3 | KSA-04-PDP | KSA-04-PDC | 塑料 | 紅色 | |||
| 06 | 10 | KSA-06-PDP | KSA-06-PDC | 塑料 | 紅色 | |||
| 08 | 12.5 | KSA-08-PDP | KSA-08-PDC | 塑料 | 紅色 | |||
| 12 | 20 | KSA-12-PDP | KSA-12-PDC | 塑料 | 紅色 | |||
| 16 | 25 | KSA-16-PDP | KSA-16-PDC | 塑料 | 紅色 | |||
| 力浦液壓 | 國際標準 | 母接頭防塵塞 | 公接頭防塵帽 | 材質 | |||
| 04 | 6.3 | KSA-04-ADP | KSA-04-ADC | 鋁 | |||
| 06 | 10 | KSA-06-ADP | KSA-06-ADC | 鋁 | |||
| 08 | 12.5 | KSA-08-ADP | KSA-08-ADC | 鋁 | |||
| 12 | 20 | KSA-12-ADP | KSA-12-ADC | 鋁 | |||
| 16 | 25 | KSA-16-ADP | KSA-16-ADC | 鋁 | |||
| 20 | 31.5 | KSA-20-ADP | KSA-20-ADC | 鋁 | |||
| 24 | 40 | KSA-24-ADP | KSA-24-ADC | 鋁 | |||
| 32 | 50 | KSA-32-ADP | KSA-32-ADC | 鋁 | |||
