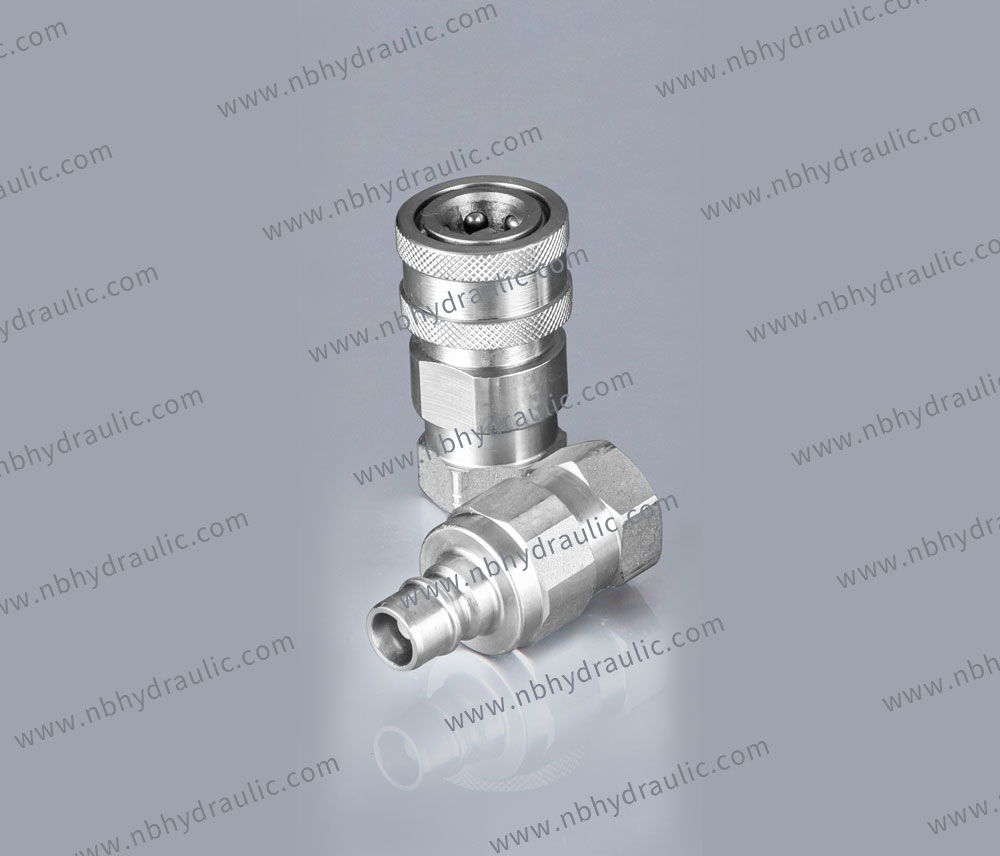

產品特性：
廣泛的金屬(鋼&不銹鋼)和密封材料允許他們與大多數流體兼容。
特殊閥芯設計使得連接和斷開操作更加簡單
雙向流
塑料防塵帽塞
應用場合：
設計用于一般液壓系統，機床，測試設備，農業，和其他移動液壓
產品規格：
材質：主體優質鋼鍍鋅
密封件: 標準NBR丁腈橡膠， FKM,EPDM可供選擇
背托環: PTFE
工作溫度：用標準密封圈 -25℃ + 125℃

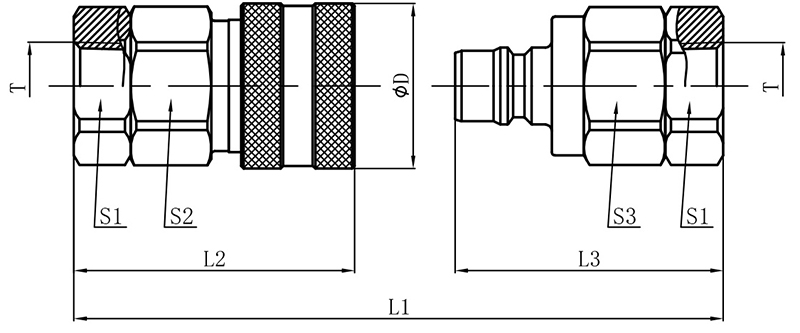

| 力浦液壓 | 國際標準 | L1 | L2 | L3 | ØD | S1 | S2 | S3 | T | 母接頭編號 | 公接頭編號 |
| 04 | 6.3 | 78.6 | 47.7 | 45.6 | 25.6 | 22.0 | 22.0 | 22.0 | 1/4"NPT | KSS-04F-NPT | KSS-04M-NPT |
| 1/4"BSP | KSS-04F-BSP | KSS-04M-BSP | |||||||||
| 06 | 10 | 93.0 | 56.0 | 54.5 | 30.6 | 24.0 | 25.4 | 25.4 | 3/8"NPT | KSS-06F-NPT | KSS-06M-NPT |
| 3/8"BSP | KSS-06F-BSP | KSS-06M-BSP | |||||||||
| 08 | 12.5 | 85.5 | 53.5 | 50.0 | 35.0 | 30.0 | 32.0 | 32.0 | 1/2"NPT | KSS-08F-NPT | KSS-08M-NPT |
| 1/2"BSP | KSS-08F-BSP | KSS-08M-BSP | |||||||||
| 12 | 20 | 108.2 | 65.4 | 65.0 | 42.0 | 36.0 | 38.0 | 38.0 | 3/4"NPT | KSS-12F-NPT | KSS-12M-NPT |
| 3/4"BSP | KSS-12F-BSP | KSS-12M-BSP | |||||||||
| 16 | 25 | 112.5 | 68.5 | 66.4 | 52.0 | 46.0 | 47.5 | 47.5 | 1"NPT | KSS-16F-NPT | KSS-16M-NPT |
| 1"BSP | KSS-16F-BSP | KSS-16M-BSP | |||||||||
| 20 | 31.5 | 155.8 | 91.4 | 87.5 | 56.7 | 50.0 | 51.0 | 51.0 | 1-1/4"NPT | KSS-20F-NPT | KSS-20M-NPT |
| 1-1/4"BSP | KSS-20F-BSP | KSS-20M-BSP | |||||||||
| 24 | 40 | 147.5 | 90.0 | 85.4 | 69.6 | 63.5 | 63.5 | 63.5 | 1-1/2"NPT | KSS-24F-NPT | KSS-24M-NPT |
| 1-1/2"BSP | KSS-24F-BSP | KSS-24M-BSP | |||||||||
| 32 | 50 | 171.5 | 105.5 | 99.5 | 90.0 | 89.0 | 89.0 | 89.0 | 2"NPT | KSS-32F-NPT | KSS-32M-NPT |
| 2"BSP | KSS-32F-BSP | KSS-32M-BSP |

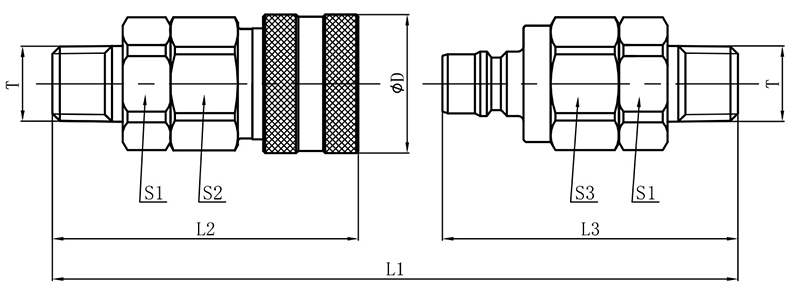

| 力浦液壓 | 國際標準 | L1 | L2 | L3 | ØD | S1 | S2 | S3 | T | 母接頭編號 | 公接頭編號 |
| 04 | 6.3 | 92.8 | 54.8 | 52.7 | 25.6 | 22.0 | 22.0 | 22.0 | 1/4"NPT | KSS-04F-NPT-M | KSS-04M-NPT-M |
| 1/4"BSP | KSS-04F-BSP-M | KSS-04M-BSP-M | |||||||||
| 06 | 10 | 97.1 | 58.0 | 56.5 | 30.6 | 24.0 | 25.4 | 25.4 | 3/8"NPT | KSS-06F-NPT-M | KSS-06M-NPT-M |
| 3/8"BSP | KSS-06F-BSP-M | KSS-06M-BSP-M | |||||||||
| 08 | 12.5 | 117.5 | 69.5 | 66.0 | 35.0 | 30.0 | 32.0 | 32.0 | 1/2"NPT | KSS-08F-NPT-M | KSS-08M-NPT-M |
| 1/2"BSP | KSS-08F-BSP-M | KSS-08M-BSP-M | |||||||||
| 12 | 20 | 146.2 | 84.4 | 84.0 | 42.0 | 36.0 | 38.0 | 38.0 | 3/4"NPT | KSS-12F-NPT-M | KSS-12M-NPT-M |
| 3/4"BSP | KSS-12F-BSP-M | KSS-12M-BSP-M |
技術特性：
| 規格 | 最大工作壓力 | 額定流量 | 最大流量 | 最小爆破壓力 | 液體溢出量 | ||||||
| 接頭體 | 接頭套 | 連接下 | |||||||||
| 力浦液壓 | 國際標準 | (bar) | (l/m) | (l/m) | (bar) | (bar) | (bar) | (cc) | |||
| 04 | 6.3 | 500 | 12 | 24 | 1800 | 1600 | 1600 | 2 | |||
| 06 | 10 | 400 | 23 | 46 | 1700 | 2000 | 1300 | 3.2 | |||
| 08 | 12.5 | 300 | 45 | 90 | 1100 | 1000 | 1000 | 4 | |||
| 12 | 20 | 250 | 106 | 212 | 640 | 990 | 1000 | 14 | |||
| 16 | 25 | 160 | 189 | 380 | 530 | 600 | 640 | 20 | |||
| 20 | 31.5 | 120 | 288 | 576 | 370 | 500 | 350 | 45 | |||
| 24 | 40 | 110 | 379 | 757 | 340 | 460 | 340 | 80 | |||
| 32 | 50 | 100 | 757 | 1000 | 350 | 440 | 370 | 150 | |||

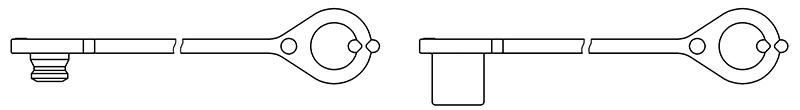

防塵帽塞：
| 力浦液壓 | 國際標準 | 母接頭防塵塞 | 公接頭防塵帽 | 材質 | 顏色 | ||
| 04 | 6.3 | KSS-04-PDP | KSS-04-PDC | 塑料 | 黑色 | ||
| 06 | 10 | KSS-06-PDP | KSS-06-PDC | 塑料 | 黑色 | ||
| 08 | 12.5 | KSS-08-PDP | KSS-08-PDC | 塑料 | 黑色 | ||
| 12 | 20 | KSS-12-PDP | KSS-12-PDC | 塑料 | 黑色 | ||
| 16 | 25 | KSS-16-PDP | KSS-16-PDC | 塑料 | 黑色 | ||
